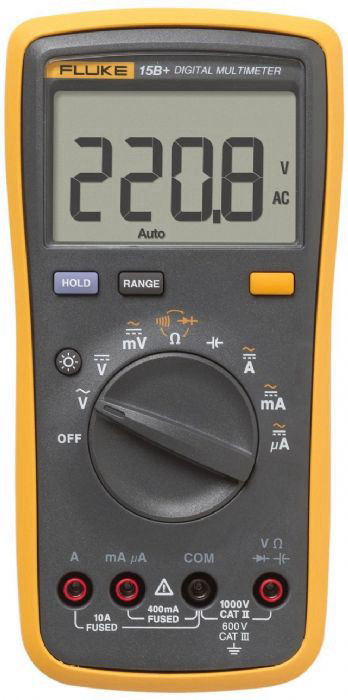

Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±(% of Reading + Number of Least Significant Digits).
| Function |
Range |
Resolution |
Accuracy |
AC volts
(40 Hz to 500Hz)1 |
4.000 V
40.00 V
400.0 V
1000 V |
0.001 V
0.01 V
0.1 V
1 V |
1.0 % + 3 |
| DC volts |
4.000 V
40.00 V
400.0 V
1000 V |
0.001 V
0.01 V
0.1 V
1 V |
0.5 % + 3 |
| AC millivolts |
400.0 mV |
0.1 mV |
3.0 % + 3 |
| DC millivolts |
400.0 mV |
0.1 mV |
1.0 % + 10 |
| Diode test2 |
2.000 V |
0.001 V |
10% |
Resistance
(Ohms) |
400.0 Ω
4.000 kΩ
40.00 kΩ
400.0 kΩ
4.000 MΩ
40.00 MΩ |
0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ |
0.5 % + 3
0.5 % + 2
0.5 % + 2
0.5 % + 2
0.5 % + 2
1.5% + 3 |
| Capacitance3 |
40.00 nF
400.0 nF
4.000 μF
40.00 μF
400.0 μF
1000 μF |
0.01 nF
0.1 nF
0.001 μF
0.01 μF
0.1 μF
1 μF |
2 % + 5
2 % + 5
5 % + 5
5 % + 5
5 % + 5
5 % + 5 |
AC current μA
(40 Hz to 400 Hz) |
400.0 μA
4000 μA |
0.1 μA
1 μA |
1.5 % + 3 |
AC current mA
(40 Hz to 400 Hz) |
40.00 mA
400.0 mA |
0.01 mA
0.1 mA |
1.5 % + 3 |
AC current A
(40 Hz to 400 Hz) |
4.000 A
10.00 A |
0.001 A
0.01 A |
1.5 % + 3 |
| DC current μA |
400.0 μA
4000 μA |
0.1 μA
1 μA |
1.5 % + 3 |
| DC current mA |
40.00 mA
400.0 mA |
0.01 mA
0.1 mA |
1.5 % + 3 |
| DC current A |
4.000 A
10.00 A |
0.001 A
0.01 A |
1.5 % + 3 |
| Backlight |
Yes |
1All ac, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.
2Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA.
3Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 40 nF range). |
| Function |
Overload Protection |
Input Impedance (Nominal) |
Common Mode Rejection Ratio |
Normal Mode Rejection Ratio |
| AC volts |
1000 V 1 |
>10 MΩ <100 pF |
>60 dB at dc,
50 Hz or 60 Hz |
- |
| AC millivolts |
400 mV |
>1MΩ, <100 pF |
>80 dB at 50 Hz or 60 Hz |
- |
| DC volts |
1000 V 1 |
>10 MΩ <100 pF |
>100 dB at dc,
50 Hz or 60 Hz |
>60 dB at 50 Hz or 60 Hz |
| DC millivolts |
400 mV |
>1MΩ, <100 pF |
>80 dB at 50 Hz or 60 Hz |
- |
| 1 106 V Hz Max |
| General Specifications |
| Maximum voltage between any terminal and earth ground |
1000 V |
| Display (LCD) |
4000 counts, updates 3/sec |
| Battery type |
2 AA, NEDA 15A, IEC LR6 |
| Battery life |
500 hours minimum (50 hours in LED Test mode without load. The hours with load depends on the type of LED under test.) |
| Temperature |
| Operating |
0 °C to 40 °C |
| Storage |
-30 °C to 60 °C |
| Relative Humidity |
| Operating humidity |
Non-condensing (<10°C)
≤90% RH at 10 °C to 30 °C;
≤75% RH at 30 °C to 40 °C |
40 MΩ range
≤80% RH at 10 °C to 30 °C;
≤70% RH at 30 °C to 40 °C |
| Altitude |
| Operating |
2000 m |
| Storage |
12,000 m |
| Temperature coefficient |
0.1 X (specified accuracy) /°C (<18 °C or >28 °C) |
| Fuse protection for current inputs |
440 mA, 1000 V Fast Fuse, Fluke specified part only.
11A, 1000V Fast Fuse, Fluke specified part only. |
| Size (HxWxL) |
183 x 91 x 49.5 mm |
| Weight |
455 g |
| IP rating |
IP 40 |
|
|
|
